Payoffs
Buonforte Machinery Works offers a wide range of products for paying off bare
conductors, cables, or optical fiber into various processes. Be it cabling,
extrusion, or stranding, we have a solution to meet your needs. We offer systems
that provide constant tension, high speed, and a rugged, robust machine platform
that will withstand the rigors faced in a cable factory.

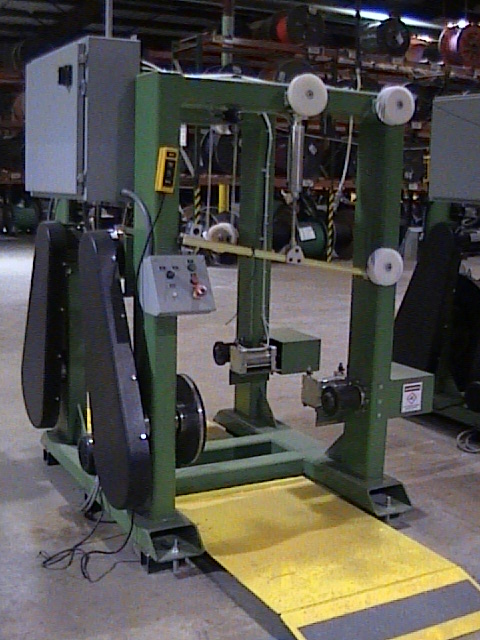

36" Cable Payoffs

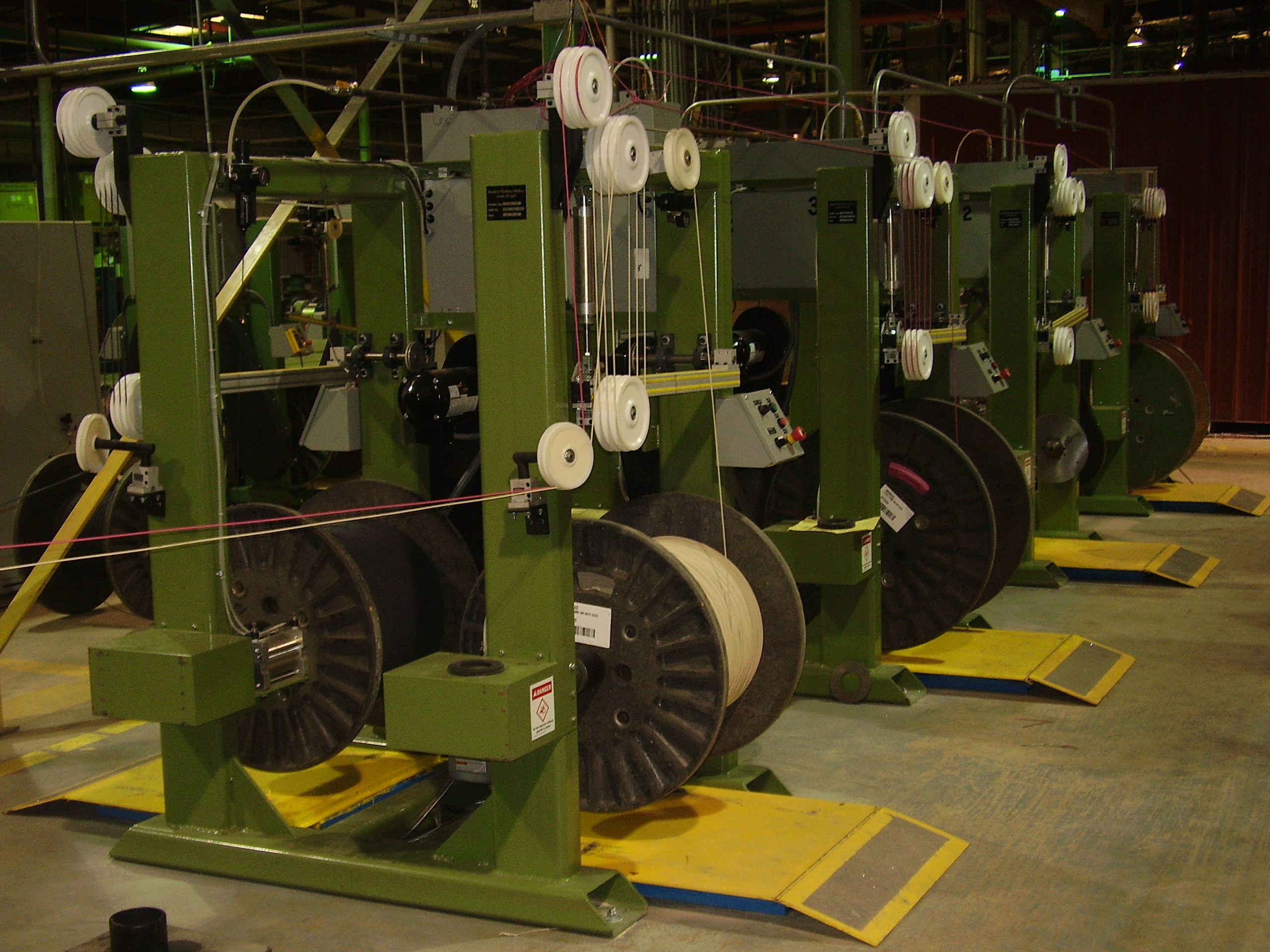

36" Cable Payoffs

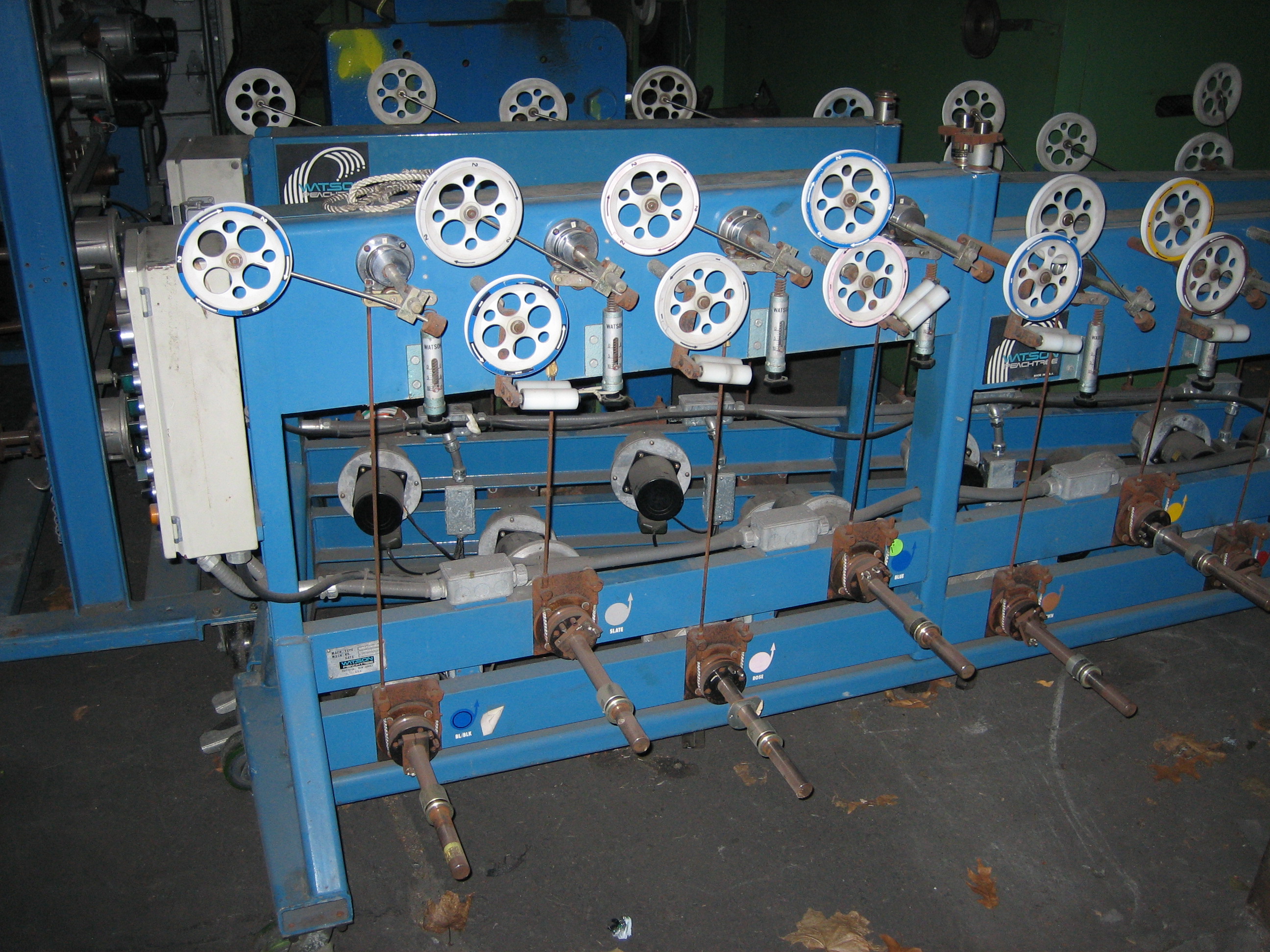

12 Position Fiber Payoffs
Buonforte Machinery Works can supply payoffs for all applications and processes for
wire and cable.
Product Types
- Cable Payoffs, ranging from 12" thru 48"
- Multi-Wire Payoffs for 630 - 900 mm
- Optical Fiber Payoffs

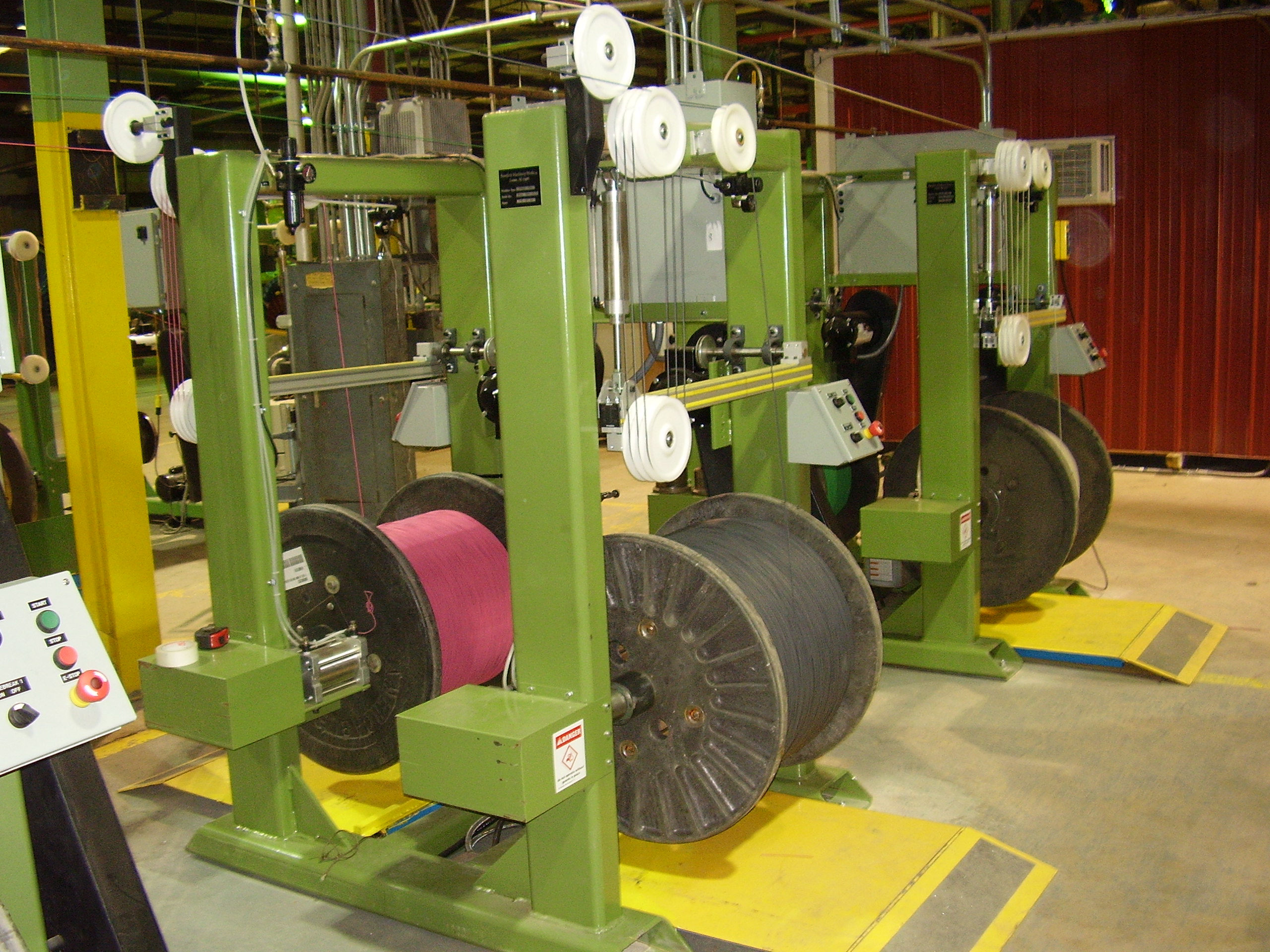

Cable Payoffs
| Model |
Spool Size |
Tension System |
Speed |
| PPDA-36 |
36" (914 mm) |
Air Dancer |
600 FPM |
| PPDA-30 |
30" (760 mm) |
Air Dancer |
600 FPM |
| PPDA-24 |
24" (630 mm) |
Air Dancer |
750 FPM |
| PPDA-22 |
22" (560 mm) |
Air Dancer |
900 FPM |
Features
- Roll in spool design
- Constant tension air dancer
- Air actuated pintles
- Spool is lifted by tapered pintles
- AC drive system
- Optional loading platform
Multi-Wire Payoffs
| Model |
Spool Size |
Tension System |
Speed |
| MW-900 |
36" (914 mm) |
Spring / Weighted |
500 FPM |
| MW-760 |
30" (760 mm) |
Spring / Weighted |
500 FPM |
| MW-630 |
24" (630 mm) |
Spring / Weighted |
600 FPM |
Features
- Roll in spool design
- Spring loaded and weighted dancers
- Screw type pintles
- Heavy duty frame design
- AC drive system
- Shaftless design
Optical Fiber Payoffs
| Model |
Spool Size |
Tension System |
Speed |
| PF-200 |
8" (200 mm) |
Spring |
300 FPM |
| PF-250 |
10" (250 mm) |
Spring |
300 FPM |
| MW-300 |
12" (300 mm) |
Spring |
300 FPM |
Features
- Multi-position units
- Spring loaded and dancers
- AC motor & clutch
- Shaft design
