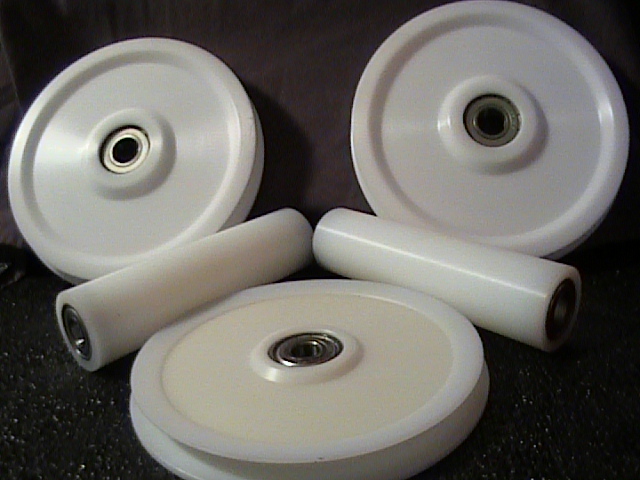

Machined UHMW Guide Sheaves are available in standard sizes ranging from 4" to 12". All sheaves are bearing mounted. Groove profiles are set per the customer specification. Standard profiles are "V" and "U".
Machined UHMW Guide Sheaves are available in standard sizes ranging from 4" to 12". All sheaves are bearing mounted. Groove profiles are set per the customer specification. Standard profiles are "V" and "U".
Standard Size Sheaves
|
Model |
Outside
Diameter |
Groove
Diameter |
Groove
Profile |
Overall
Width |
Shaft
Diameter |
|
BMNS-4
BMSS-4 |
4.750 Inches
(120.65 mm) |
4 Inches
(101.6 mm) |
U or V
Groove |
.5 Inch
(12.7 mm) |
12 mm |
|
BMNS-6
BMSS-6 |
7 Inches
(177.8 mm) |
6 Inches
(152.40 mm) |
U or V
Groove |
.750 Inch
(19 mm) |
12 mm |
|
BMNS-8
BMSS-8 |
9.5 Inches
(241.3 mm) |
8 Inches
(203.2 mm) |
U or V
Groove |
1.0 Inch
(25.4 mm) |
30 mm |
|
BMNS-10
BMSS-10 |
11.5 Inches
(292.1 mm) |
10 Inches
(254 mm) |
U or V
Groove |
1.0 Inch
(25.4 mm) |
30 mm |
|
BMNS-12
BMSS-12 |
14 Inches
(355.6 mm) |
12 Inches
(304.8 mm) |
U or V
Groove |
1.250 Inch
(31.75 mm) |
30 mm |
Custom sheaves and roller sizes are available upon request. Contact
Buonforte Machinery Works at (973) 903-9730, or
info@buonfortemachinery.com, for current pricing and deliveries.
Key Features
- Made from virgin plastics
- All sheaves & rollers are bearing mounted
- 100% machined, not cast
- Nested sheaves are supplied with spacers
- Custom sizes are available, please call for details.
|
